Capacitive Touch Screen RFID Card Reader

Ask Lasest Price
Brand Name :	LKS or customized
Model Number :	LKS8504D
Certification :	CE, FCC
Payment Terms :	T/T in Advance
Supply Ability :	1000-2000 units per month
Delivery Time :	4-6weeks upon payment

Add to Cart

Product Details
Company Profile

Self Ticket Vending Machine IR / SAW / Capacitive Touch Screen RFID Card Reader

Self Ticket Vending Machine IR / SAW / Capacitive Touch Screen RFID Card Reader

43 inch Touch screen
Telephone
Webcamera
Barcode scanner
Receipt Printer
RFID Card Reader

Features

IP 65 Rated
Screen uses an ambient light sensor to increase and decrease brightness when necessary to make it easy to read in all light conditions
Internal heating / ventilation system to keep the PC at optimum running temperature
Kiosk and its accessories are completely secured by a sophisticated locking mechanism
Kiosk is stabilised through bolts set into a purpose-set concrete base. This base must be set at a depth of 80cm into the ground.

Self Ticket Vending Machine IR / SAW / Capacitive Touch Screen RFID Card Reader
Standard hardware components List is as following:

Components	Details
PC system	Industrial Board	Seavo/ Gigabyte/Advantech AIMB 562
	CPU	Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
	RAM	2GB /4 GB / 8GB
	HDD/SSD	HDD 1T or SSD 128/256G
	Interface	6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
	PC Power Supply	HUNTKEY/Great Wall
LCD monitor	Screen Size	43 inch( optional from 8inch to 65inch)
	Brightness	250cd/m2
	angle	horizontal 100°above;Vertical 80°above
	Contrast	1000:1
	Backlight tube life	more than 40,000hours
	Max. resolution	1280×1024
Touch screen	Screen Size	43 inch Diagonal ( optional from 8inch to 65inch)
	Resolution	4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Internal heater( Air condition)	Cooling Method	air to air
	Cooling Effective Power	100W
	Heating Effective Power	150W
	Working environment	-30°C-70°C；<90%RH.
Digital Power Supply	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
Accessories	Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System	Windows 7 or Windows XP operation system without license
KIOSK Cabinet	Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing	Security Packing method with bubble foam and wooden case

Self Ticket Vending Machine IR / SAW / Capacitive Touch Screen RFID Card Reader hardware components List is as following:

Pinpad
Bank card reader
Web camera
Wireless Moudal
Card dispenser
Contactless Card reader

Multifunction:

Restaurant
Parking Lot
Banks
Metro Station
Theatre
Shopping Mall
Movie Theatre
Air port station
Railway Station
Hotel
Other Public areas

The Reason you choose LKS:

LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.

LKS Factory Tour-Process Of Followsheet
Kiosk Design Ideas

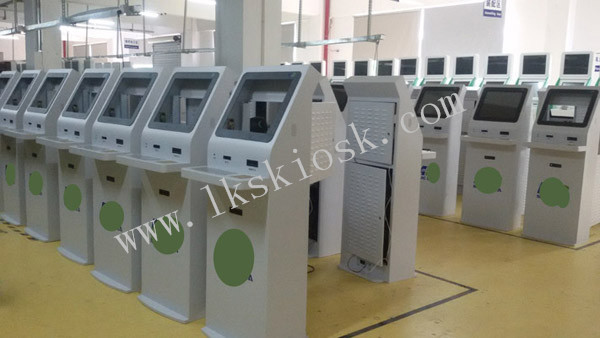

LKS Factory Tour- Kiosk Mass Producing.

LKS Certificates :

LKS Factory tour-Receiption Desk.
reception
LKS Office
office new
LKS Shipping Terms

Welcome to contact us and send inquiry now!
